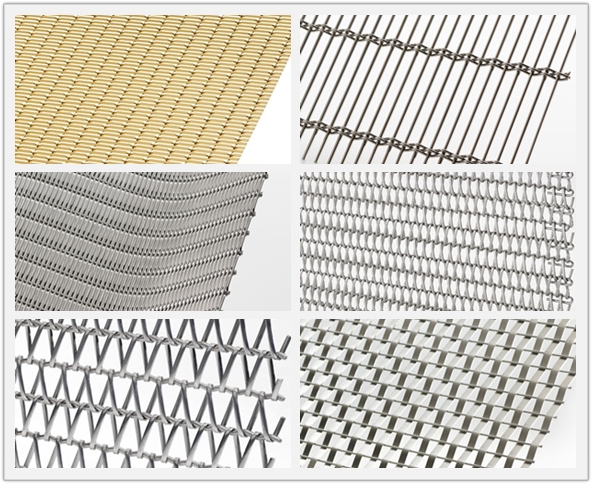

Decorative Cable Mesh Product Description
Weft and warp weaved and combined soft with rigi, wire mesh can be widely applied to the decoration industry to create any effect the designer can dream.

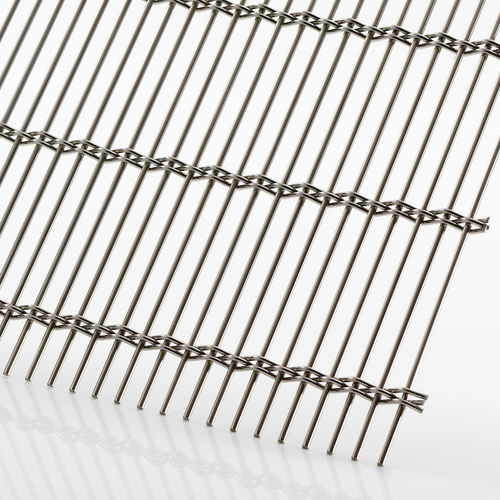

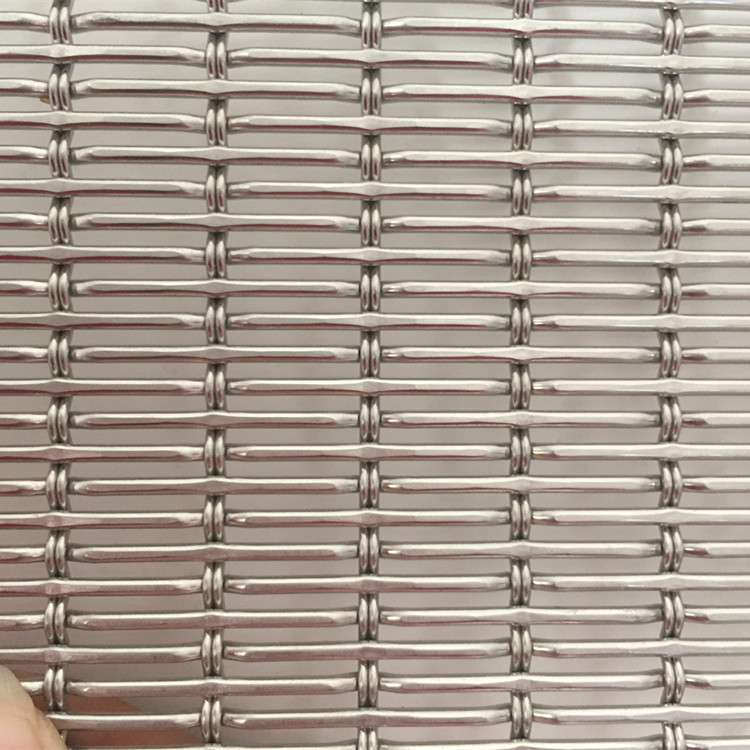

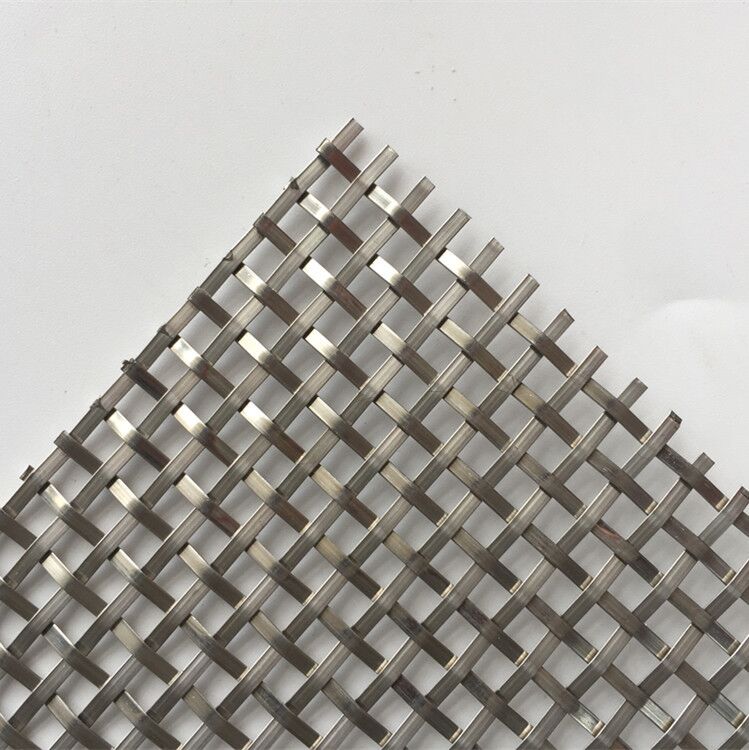

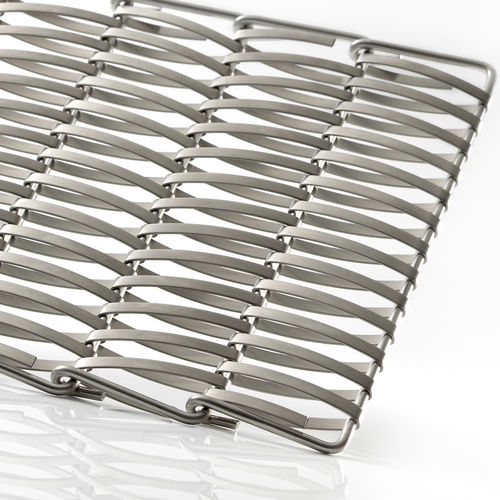

Cable metal mesh is a kind of decorative metal mesh.
The cable metal mesh is combined with braided steel cables and steel rod.
Commonly the warp wire is steel cables and the weft wire is steel rod.
Materials : stainless steel is more popular, aluminum, brass wire and copper wire,
phosphor bronze, and other materials can also be customized.
Vertical wire dia:0.5-2.5mm
Horizontal wire dia:1.5~8mm
Main parts: cable mesh , cable rod, cable pitch, rod pitch.
Decorative Cable Mesh Product Specification
|
Design
|
Open area
|
Cable wire dia.
|
Cable pitch
|
Bar dia.
|
Bar pitch
|
Thickness
|
Weight
|
|
1
|
40%
|
1x1.8 mm
|
4 mm
|
1.5 mm
|
5.5 mm
|
5.1 mm
|
7.74kg/m2
|
|
2
|
43%
|
1x2.5 mm
|
6 mm
|
2 mm
|
8 mm
|
5.5 mm
|
7.87kg/m2
|
|
3
|
62%
|
2x2.75 mm
|
40 mm
|
4 mm
|
14.5 mm
|
9.5 mm
|
9.41kg/m2
|
|
4
|
37.20%
|
3x0.5 mm
|
3.5 mm
|
0.5 mm
|
1.4 mm
|
1.3 mm
|
2.4kg/m2
|
|
5
|
71%
|
3x1.6 mm
|
80 mm
|
2.5 mm
|
10 mm
|
5.7 mm
|
4.58kg/m2
|
|
6
|
65%
|
3x2 mm
|
80 mm
|
3 mm
|
10 mm
|
7 mm
|
6.67kg/m2
|
|
7
|
65.90%
|
3x2.75 mm
|
110 mm
|
4 mm
|
14.5 mm
|
10 mm
|
8.5kg/m2
|
|
8
|
67%
|
3x3 mm
|
110 mm
|
4 mm
|
14.2 mm
|
10 mm
|
8.6kg/m2
|
|
9
|
44.30%
|
4x0.75 mm
|
26.4 mm
|
1.5 mm
|
3 mm
|
3 mm
|
5.2kg/m2
|
|
10
|
62%
|
4x1 mm
|
36 mm
|
2 mm
|
6.6 mm
|
4 mm
|
4.55kg/m2
|
|
11
|
40%
|
4x2 mm
|
50 mm
|
3 mm
|
6 mm
|
7mm
|
11.2kg/m2
|
|
12
|
42%
|
4x2 mm
|
50 mm
|
3 mm
|
6 mm
|
7 mm
|
11.8kg/m2
|
Decorative Cable Mesh Product Application
Cable mesh products are widely used in interior and exterior decorations.
such as hotel, high buildings, elevators, luxury office buildings,
grand ballroom, business hall and other buildings.
1. Windows screen; 2. Space divider; 3. Mesh curtains; 4. Wall decoration;
5. Ceiling decoration; 6. Handrail balustrade; 7. Sunshade; 8. Facade cladding;
9. Elevator cabins screen; 10. Shop-exhibition stands; 11. Security door ;
12. Partition and isolation screens; 13.Glass laminated wire; 14.Elevator cab mesh
