TECHNICAL CAPABILITIES OF PERFORATED METAL

Perforation size: 1mm-154mm (additional Perforation sizes are available on request)
Sheet Thickness: Popular thickness: 0.75mm – 12mm. Graepels can perforate up to 25mm thick on special request/order
Sheet sizes: Standard sizes include 2mx1m, 2.5mx1.25m and 3mx1.5m. Sheets 4mx2m are perforated on our larger machines. Longer lengths up to 6m perforated by special request.

Percentage open area: All open areas are physically possible but standard tooling tends to be between 20% and 60%

Please note:

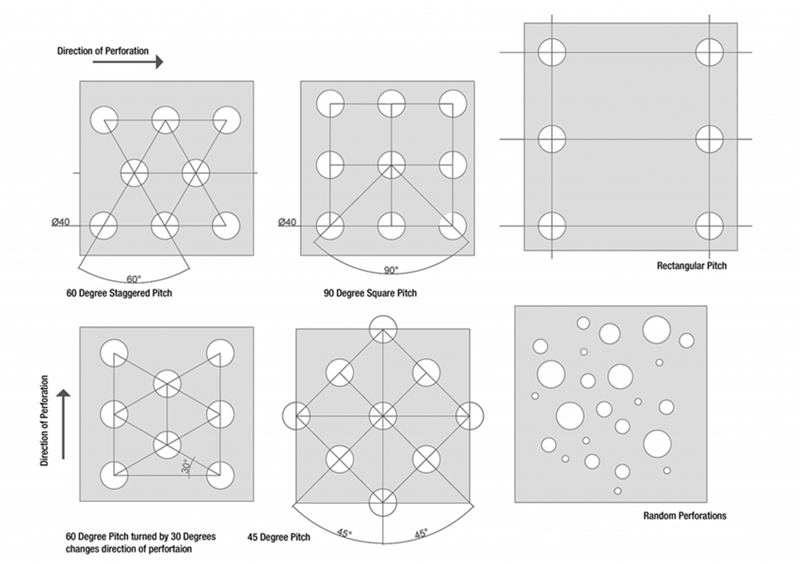

Typical pitch configurations are 45 Degree, 60 Degree, Rectangular pitch and 90 Degrees.
60 Degrees at 30 Degrees, random perforations, decorative perforations and picture perf are bespoke.

Application:

1.Aerospace: nacelles, fuel filters, air filters

2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors

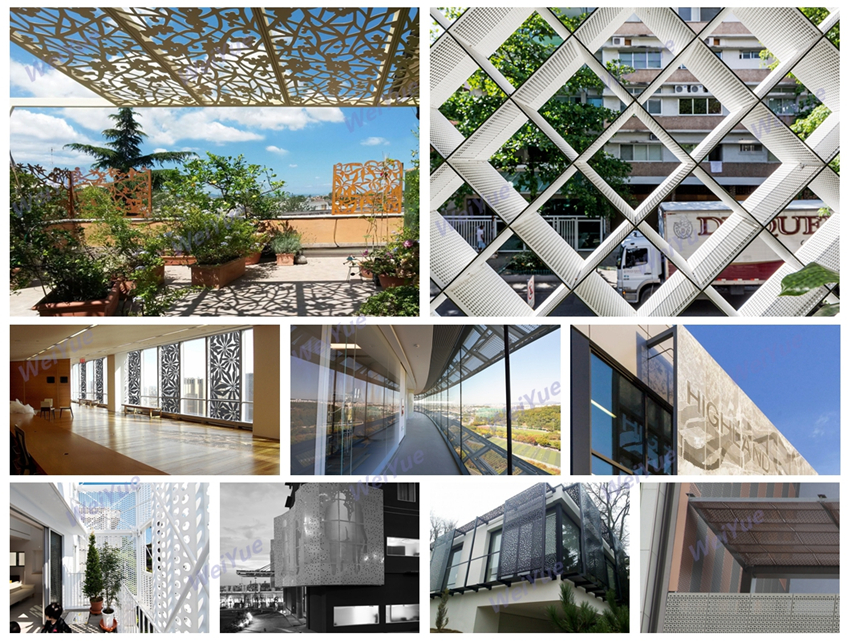

3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption
4.Audio Equipment: speaker grills
5.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills

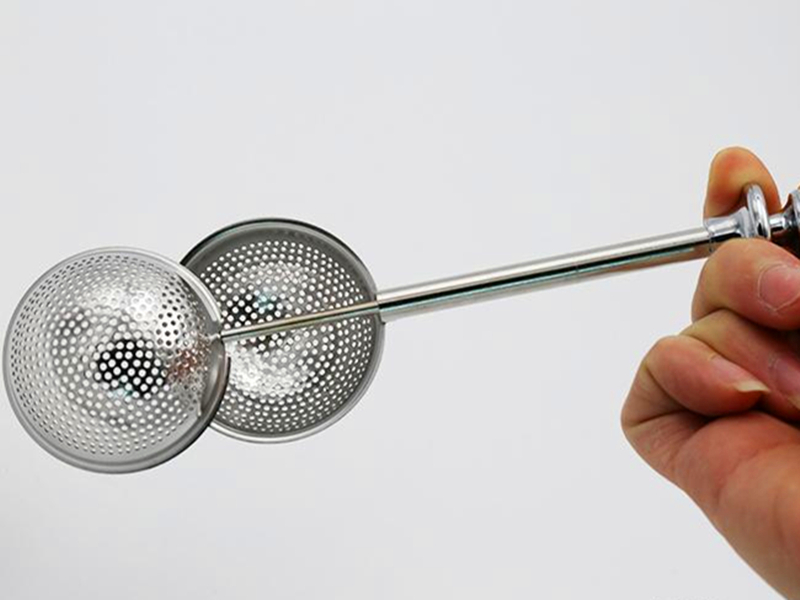

6.Food Processing: trays, pans, strainers, extruders

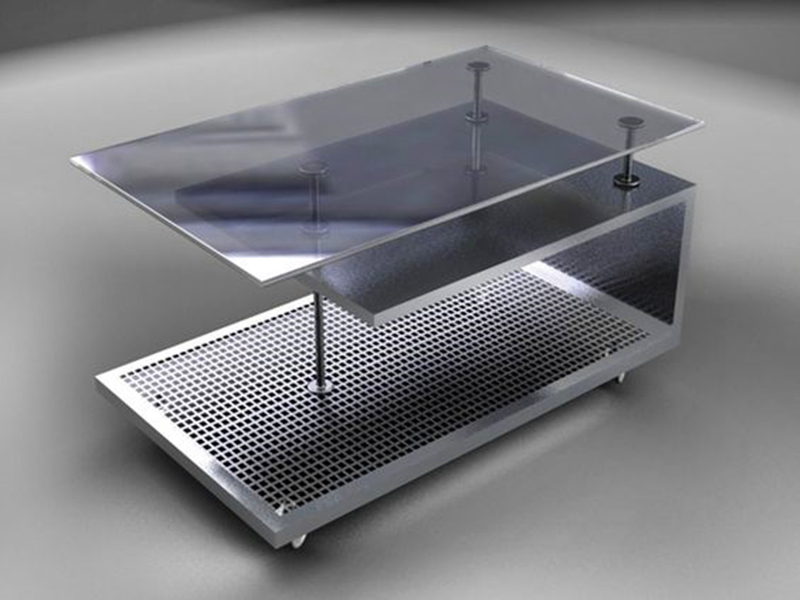

7.Furniture: benches, chairs, shelves
8.Filtration: filter screens, filter tubes, strainers for air gas and fluids, dewatering filters
9.Hammer mill: screens for sizing and separating
10.HVAC: enclosures, noise reduction, grilles, diffusers, ventilation
11.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection
12.Lighting: fixtures

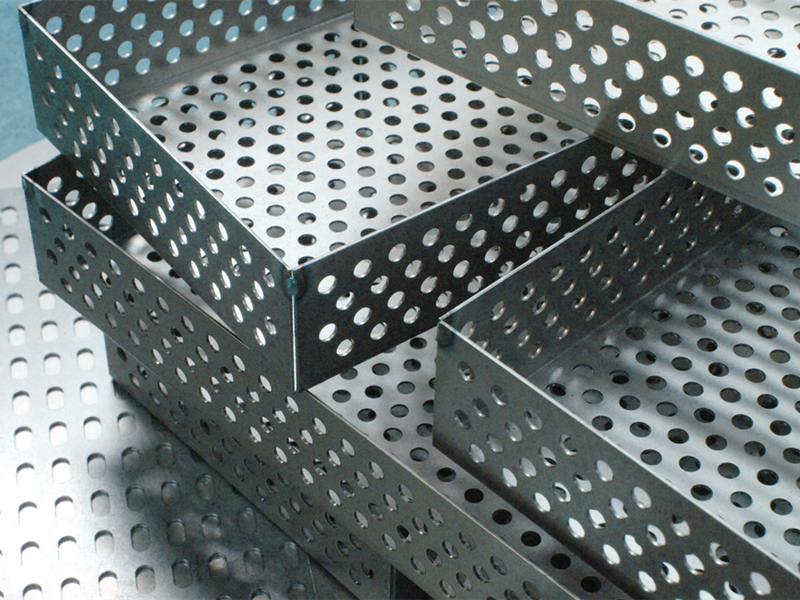

13.Medical: trays, pans, cabinets, racks
14.Pollution control: filters, separators
15.Power generation: intake and exhaust manifold silencers
16.Mining: screens
17.Retail: displays, shelving
18.Security: screens, walls, doors, ceilings, guards
19.Ships: filters, guards
20.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates
21.Textile: heat setting

Product Show:

BENEFITS OF CHOOSING PERFORATED METAL

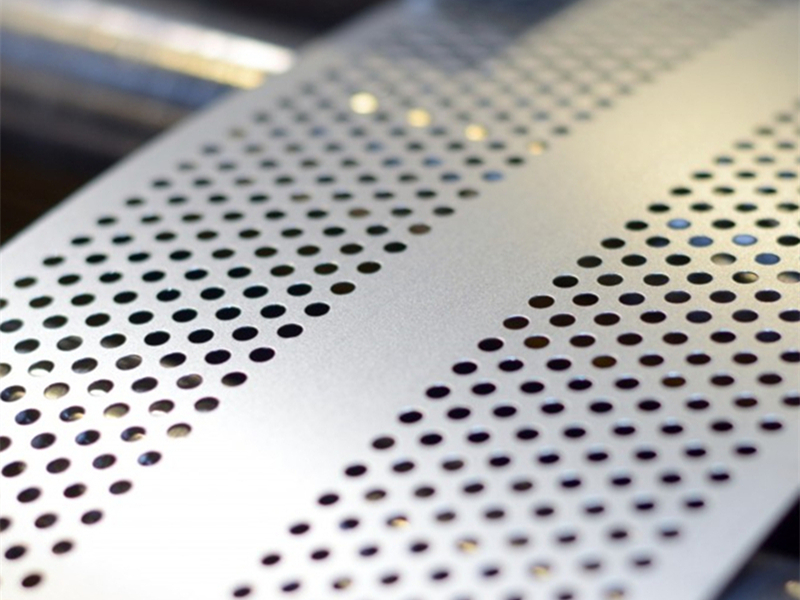

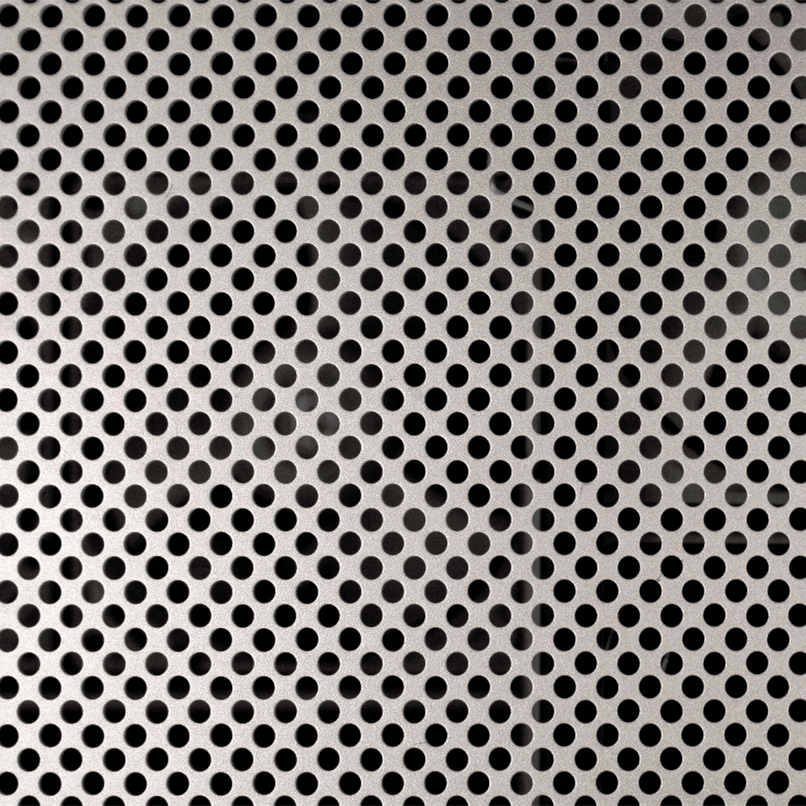

In its solid state, Perforated Metal Sheets are smooth with a high strength ratio especially when round holes are used. This makes it ideal for forming into three-dimensional shapes to increase strength and rigidity.

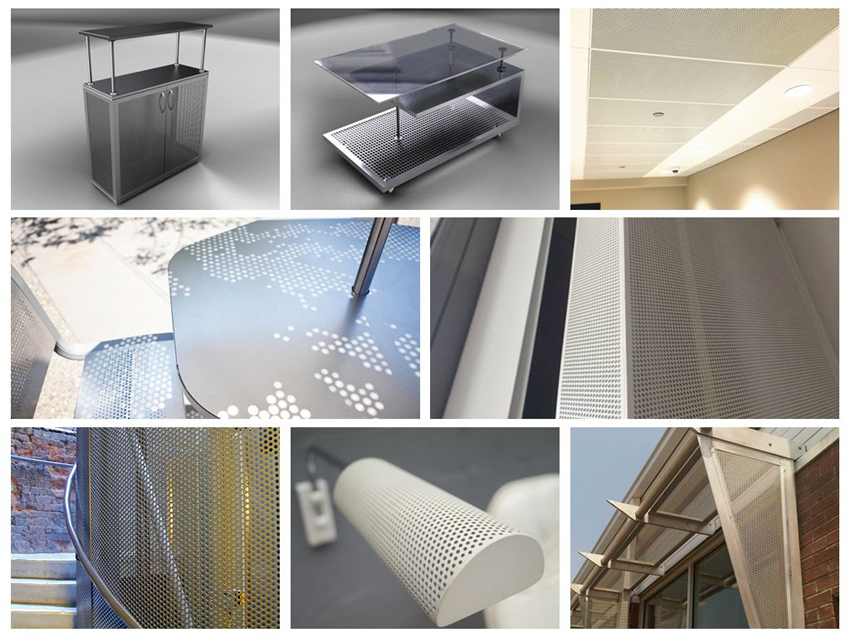

Perforated Metal sheeting is ideal for applications such as ceiling tiles, cladding, lamps, balustrade infill and much more.

We offer a wide range of metals and alloys to provide the best material or combination of materials for the perforated metal sheet. Contact us today for more information or a detailed quote.
