Perforated metal sheet

  • Rolled SS 304, 304L, SS 316L Perforated Coils
  • Rolled SS 304, 304L, SS 316L Perforated Coils
  • Rolled SS 304, 304L, SS 316L Perforated Coils
Rolled SS 304, 304L, SS 316L Perforated CoilsRolled SS 304, 304L, SS 316L Perforated CoilsRolled SS 304, 304L, SS 316L Perforated Coils

Rolled SS 304, 304L, SS 316L Perforated Coils

  • Top grade raw material
  • Punching with new mold
  • Super flat metal sheet surface
  • The smallest tolerance
  • Product description: SS304 Perforated Sheet Approx. Size : Width 1.8m x Length 3m x Thick 10mm Perforated Holes Diameter : OD. 6mm x Pitch 10mm ( Stagger )
  • INQUIRY

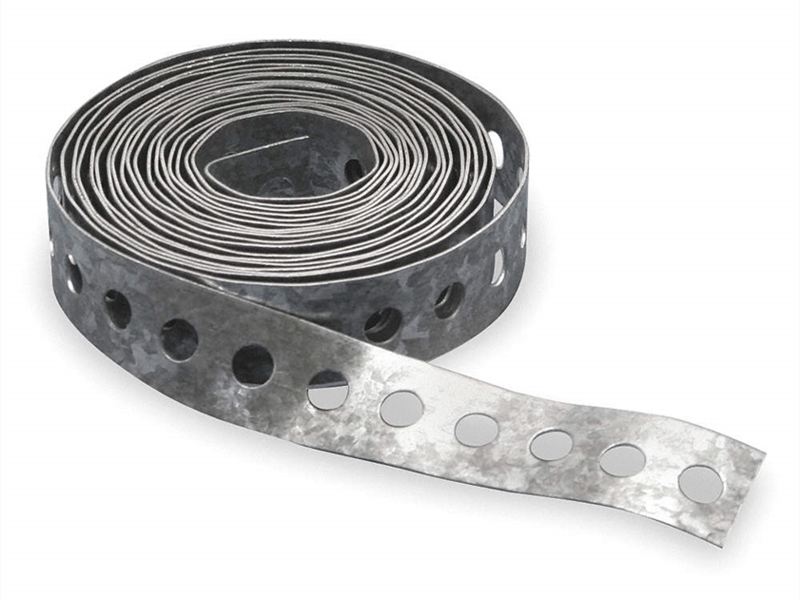

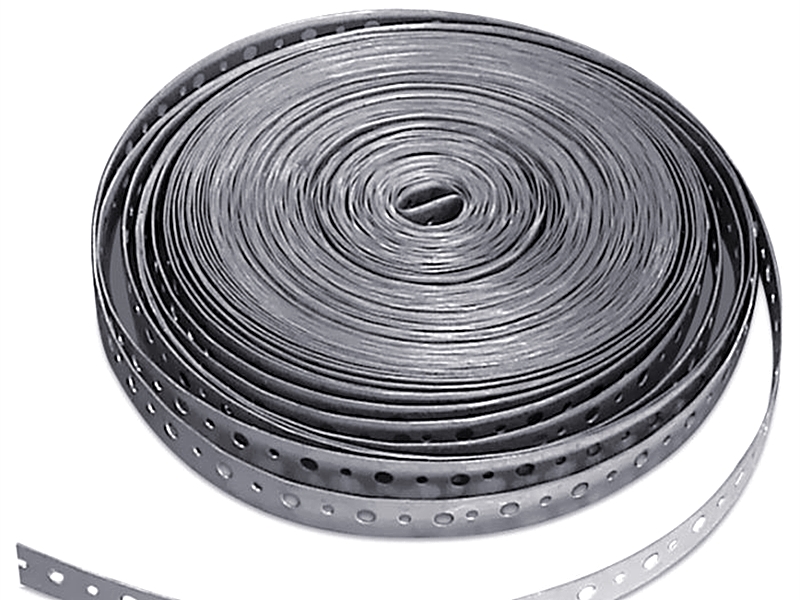

We supply ss perforated coils with the following specifications:

Illustration of Stagger Pattern R3T5 Stainless Steel Staggered Metal Illustration

- SS 304L perforated sheets in coil, 168 mm wide, with 5 mm plain on each side, thickness 2 mm, staggered in R3T5, drawing refering to picture above;

- SS 316L perforated sheets in coil, 168 mm wide, with 5 mm plain on each side, thickness 2 mm, staggered in R3T5.

- Rolled SS304 Perforated Sheet x 10mm thick.
Finish Size : ID. 430mm x OD. 450mm x Length 1700mm
Perforated Holes Diameter : OD. 6mm x Pitch 10mm ( Stagger )

- SS304 Perforated Sheet
Approx. Size : Width 1.8m x Length 3m x Thick 10mm
Perforated Holes Diameter : OD. 6mm x Pitch 10mm ( Stagger )

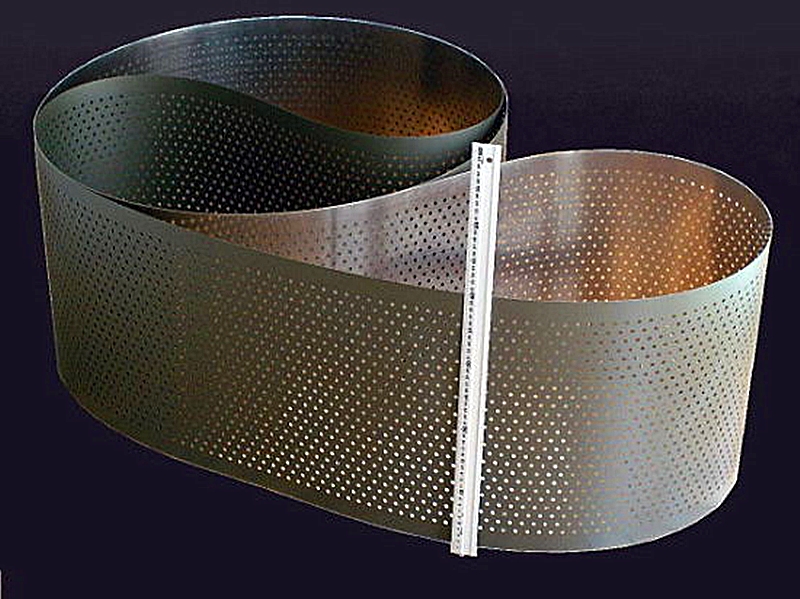

Stainless Steel 304 Perforated Sheet in Coils, Inner Diameter: 430mm


SS 304L perforated sheets in coil, thickness 2 mm, staggered in R3T5

Application: SS coils perforated are high grade mesh panels popularly used for architectural decoration and various guarding panels.

How we guarantee quality stainless staggered sheet:

Production Process

Top grade raw material
We use quality material from well-established top steel plants in China. To make sure the material with standard content, with good toughness, tensile strength. Record is made for every lot of material used for every order of each customer.

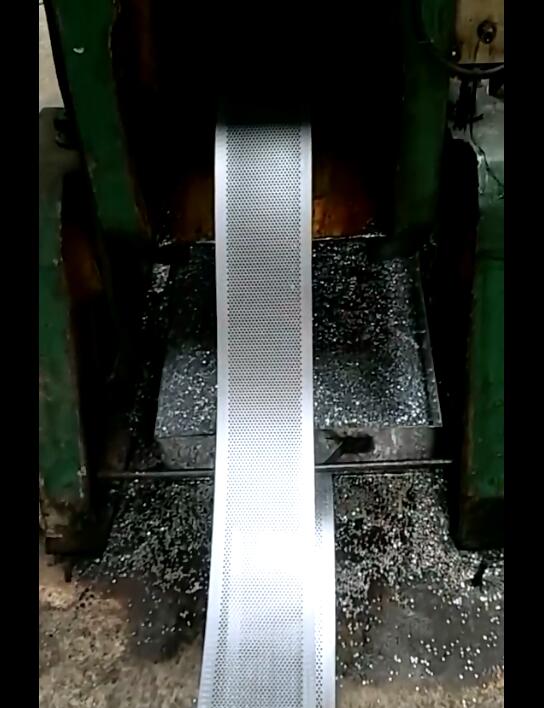

Punching with new mold
During the product progress, we will make sure that new mold is used to avoid product deformation, and burrs.


Super flat metal sheet surface
With flattening machine, the metal mesh surface will be flattened to fine quality smoothness. Maximum width to be flattened is 4 m, meeting the leveling effect of big size sheet.


The smallest tolerance
We use sophisticated hydraulic cutting machine to cut custom thickness precisely.


Standard quality control process: 100% Inspection
Hengda has professional quality control staff to do 100% inspection.


SS 316L perforated stainless steel mesh in rolls
