Perforated metal sheet

Slotted Hole Perforated Metal

Perforation size: 1mm-154mm (additional Perforation sizes are available on request)
Sheet Thickness: Popular thickness: 0.75mm – 12mm. Graepels can perforate up to 25mm thick on special request/order
Sheet sizes: Standard sizes include 2mx1m, 2.5mx1.25m and 3mx1.5m. Sheets 4mx2m are perforated on our larger machines. Longer lengths up to 6m perforated by special request.
Percentage open area: All open areas are physically possible but standard tooling tends to be between 20% and 60%
Product description: Perforated Metal Sheets have a variety of Architectural, Industrial and Commercial Applications. For instance, Perforated Sheets are an excellent choice for windbreakers, anti-slip flooring & steps.
INQUIRY

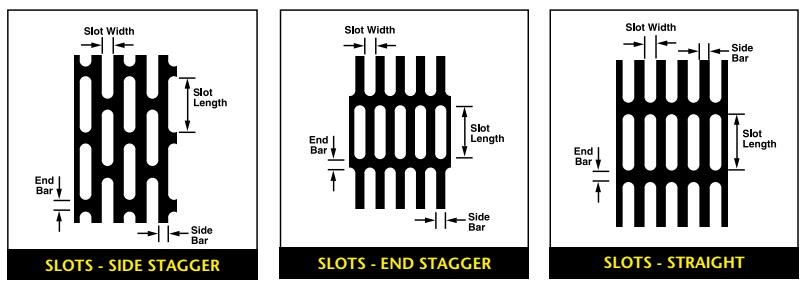

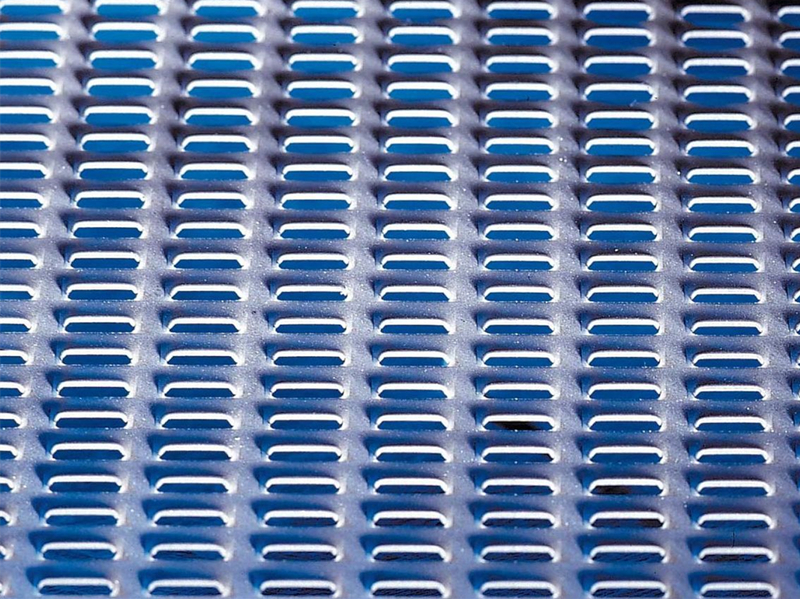

Hole type: The slotted hole perforated metal is divided into a rectangular hole metal and an oblong hole metal.

Perforated metal sheet

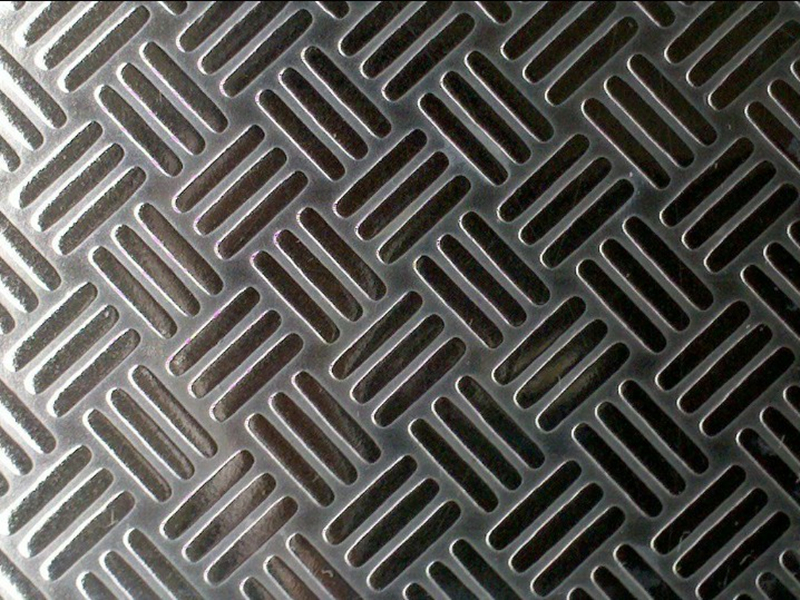

Perforated patterns are available in one-hole size or a variety of different hole sizes and shapes
Bespoke patterns and pitches are designed to individual customer’s requests
Different Perforated Metal types are also available in flush, embossed (raised), countersunk and louvered
Standard staggered pitch include; 60, 90 and 45-degree orientation

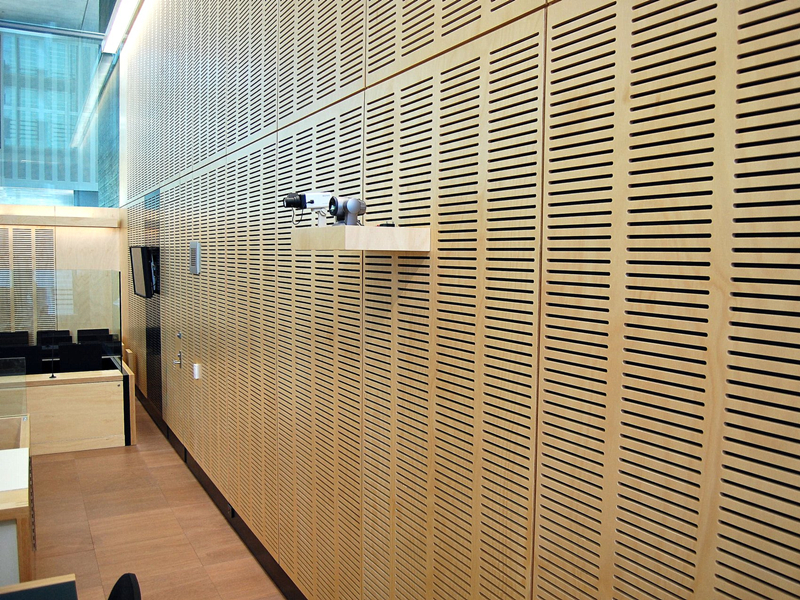

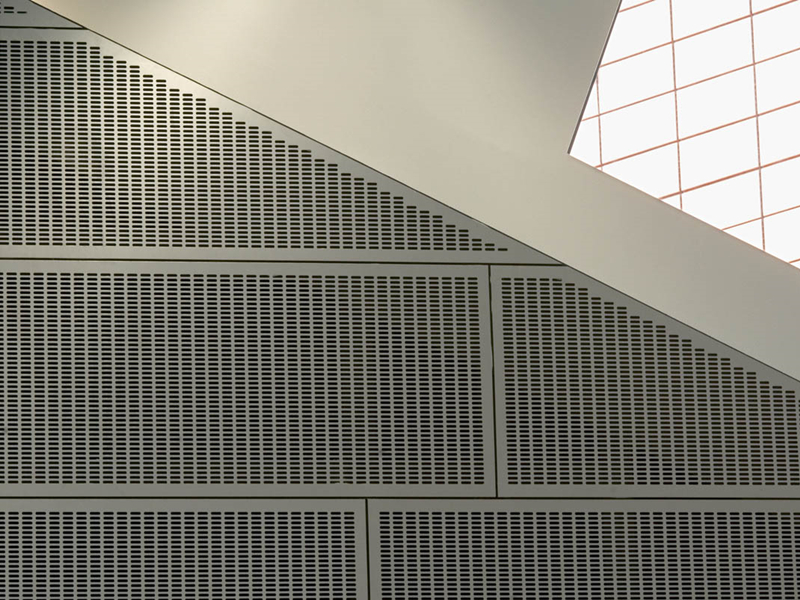

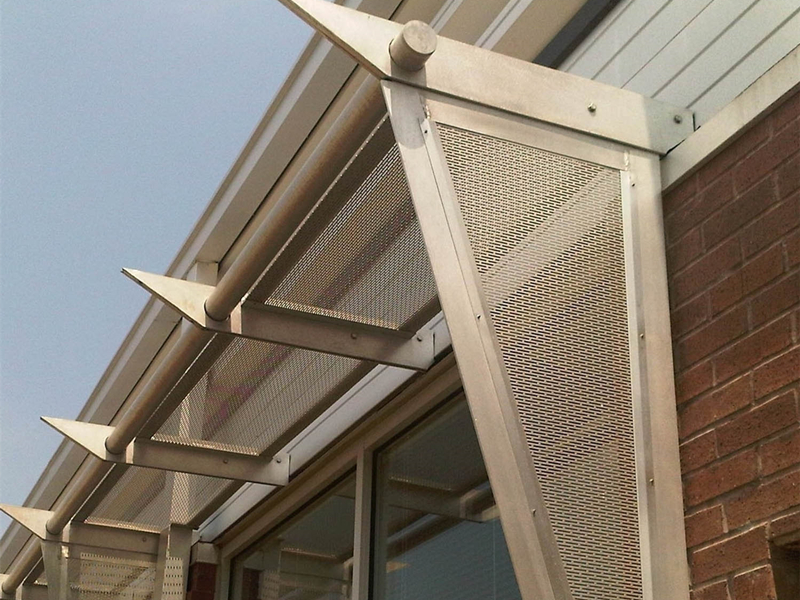

Architectural Sector: Balustrade Infill Panels, Walkways, Weather Screens (Sun, Wind & Rain Screens), Rainscreen Cladding
Industrial Sector: Filtration, Ventilation, Security Grills, Sound Attenuation, Air Pressure Control, Fencing, Machine Guards
Agricultural Industry: Pest control, Screening and Grading, Milling, Flooring for Pigs, Sheep or Cattle
Quarry & Recycling Industry: Screening and Grading
Retail Industry: Point of Sale and Decorative Applications

In its solid state, Perforated Metal Sheets are smooth with a high strength ratio especially when round holes are used. This makes it ideal for forming into three-dimensional shapes to increase strength and rigidity.
Perforated Metal sheeting is ideal for applications such as ceiling tiles, cladding, lamps, balustrade infill and much more.
