Stainless steel mesh

  • Reverse Twill Dutch weave wire cloth
  • Reverse Twill Dutch weave wire cloth
  • Reverse Twill Dutch weave wire cloth
Reverse Twill Dutch weave wire cloth Reverse Twill Dutch weave wire cloth Reverse Twill Dutch weave wire cloth

Reverse Twill Dutch weave wire cloth

  • The product strength: will to work under high working strength.
  • High corrosion resistance: stainless steel has the advantage of high wear resistance and corrosion
  • Stable work effect: high-quality products with high-quality raw materials does not readily transform.
  • Easy to clean: It has the advantage of convenient cleaning.
  • Product description: Material:Stainless steel wire(SUS302,304,304L,316,316L),nickel wire, brass wire.
  • INQUIRY

Reverse Twill stainless steel wire mesh

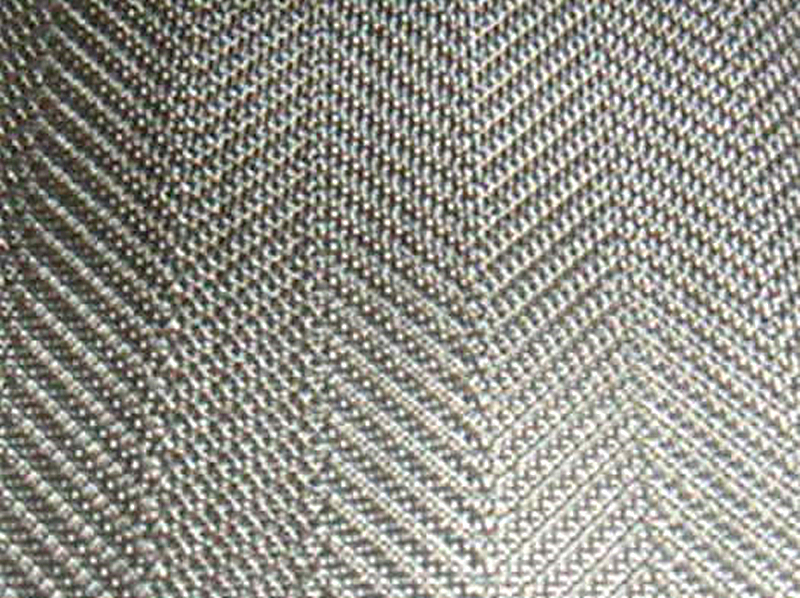

Reverse Twill Dutch weave wire clothcombines Dutch and twill weaving to provide a fine mesh filtering cloth. The weaving process allows for the use of very fine wires, producing filtering mesh for gas and liquid applications. We also provide Herringbone and Broken Pattern Reverse Twill Dutch Weave Products.

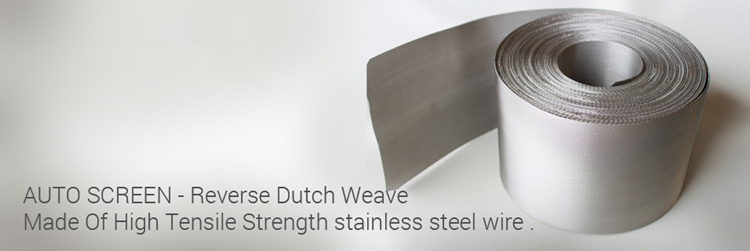

We also offer high tensile warp wire configurations that are commonly used in auto screen changers used in the plastic extrusion industry.

Weiyue wire mesh offers custom wire configurations for wire cloth to meet the specific needs of its clients. For Dutch weaves micron-grade wire is most commonly used. In addition, DWT has the capability to manufacture:

  • High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.
  • Rubbed Edges after slitting to help with tracking for Auto-Screen changers.
  • Plasma and laser cut parts to help prevent edges wire fraying.
  • 100% Inspection of Wire Cloth for critical applications such as sand screens and aerospace applications.
We offer a wide range of metals and alloys to provide the best material or combination of materials for the filter mesh. Contact us today for more information or a detailed quote.


Standard Specs

Mesh

Wire diameter(mm)

Filtering accuracy

63×18

0.30×0.4

200

107×20

0.24×0.4

150

175×44

0.15×0.30

80

132×32

0.20×0.40

105

290×70

0.09×0.20

55

615×102

0.04×0.16

40

720×140

0.035×0.11

15

(Special specification we can produce according to customer's requirements)
