Stainless steel mesh

  • Reverse Dutch Weave Wire Cloth
  • Reverse Dutch Weave Wire Cloth
  • Reverse Dutch Weave Wire Cloth
Reverse Dutch Weave Wire ClothReverse Dutch Weave Wire ClothReverse Dutch Weave Wire Cloth

Reverse Dutch Weave Wire Cloth

  • High corrosion resistance: stainless steel has the advantage of high wear resistance and corrosion
  • Stable work effect: high-quality products with high-quality raw materials does not readily transform.
  • The product strength: will to work under high working strength.
  • Easy to clean: It has the advantage of convenient cleaning.
  • Product description: Material:Stainless steel wire(SUS302,304,304L,316,316L),nickel wire, brass wire.
  • INQUIRY

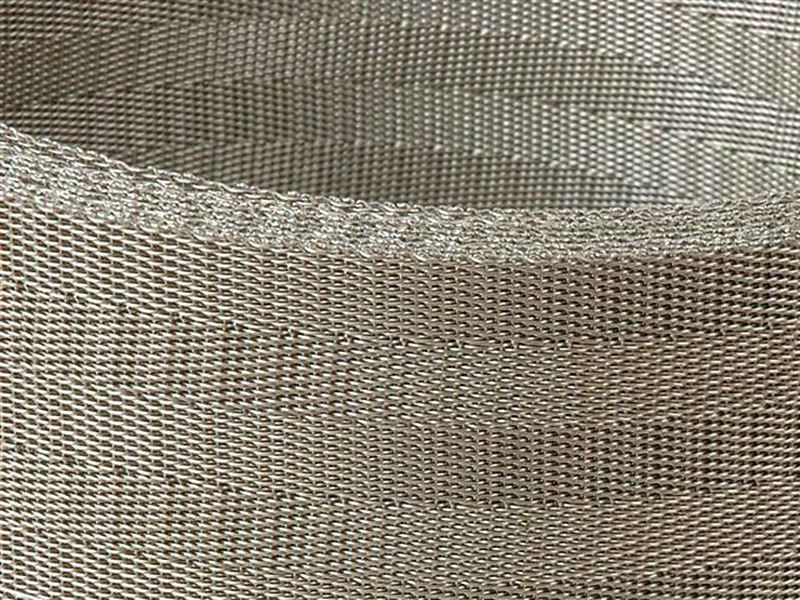

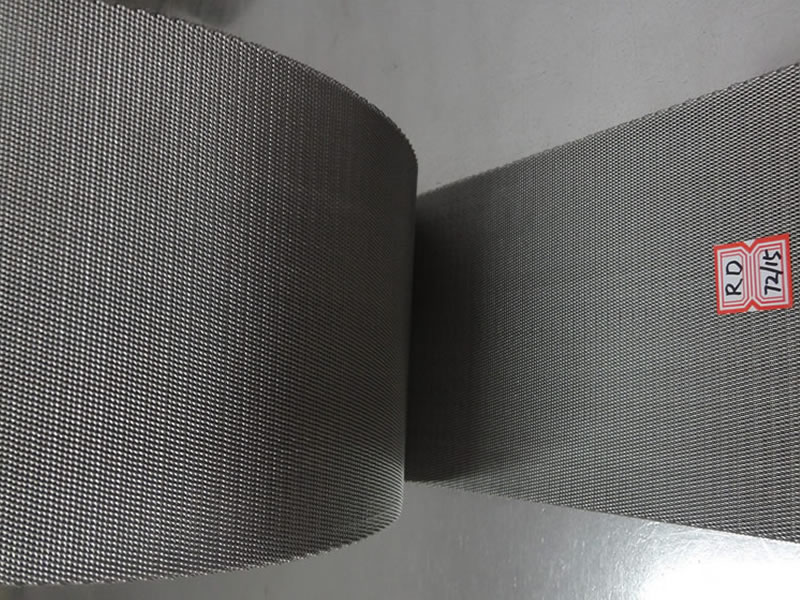

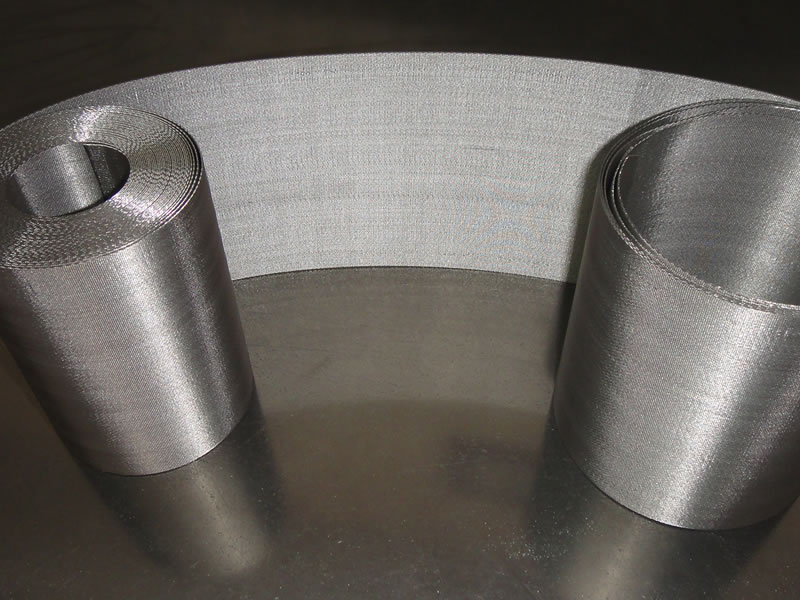

Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.

Dutch weave wire mesh

We also offer high tensile warp wire configurations that are commonly used in auto screen changers used in the plastic extrusion industry.

Weiyue wire mesh offers custom wire configurations for wire cloth to meet the specific needs of its clients. For Dutch weaves micron-grade wire is most commonly used. In addition, DWT has the capability to manufacture:

  • High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.
  • Rubbed Edges after slitting to help with tracking for Auto-Screen changers.
  • Plasma and laser cut parts to help prevent edges wire fraying.
  • 100% Inspection of Wire Cloth for critical applications such as sand screens and aerospace applications.
We offer a wide range of metals and alloys to provide the best material or combination of materials for the filter mesh. Contact us today for more information or a detailed quote.

Standard Specs

Mesh

Wire diameter(mm)

Filtering accuracy

63×18

0.30×0.4

200

107×20

0.24×0.4

150

175×44

0.15×0.30

80

132×32

0.20×0.40

105

290×70

0.09×0.20

55

615×102

0.04×0.16

40

720×140

0.035×0.11

15

(Special specification we can produce according to customer's requirements)
