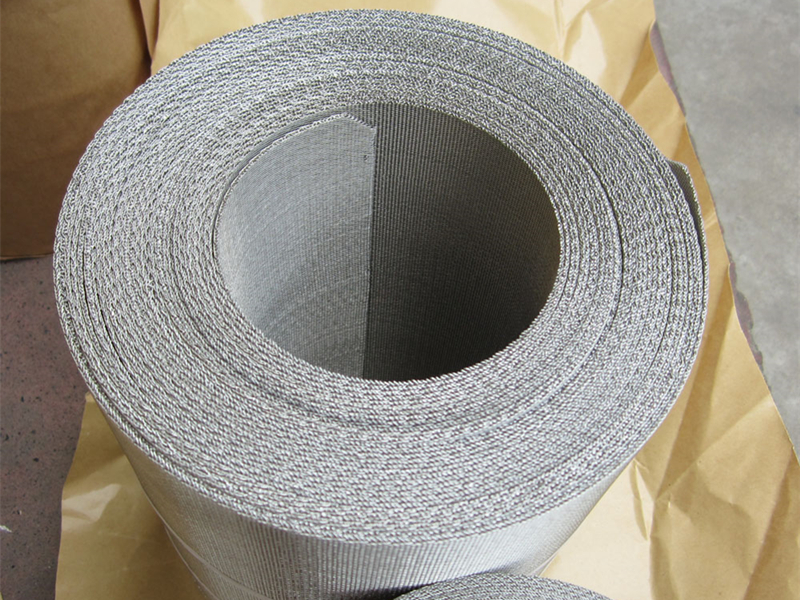

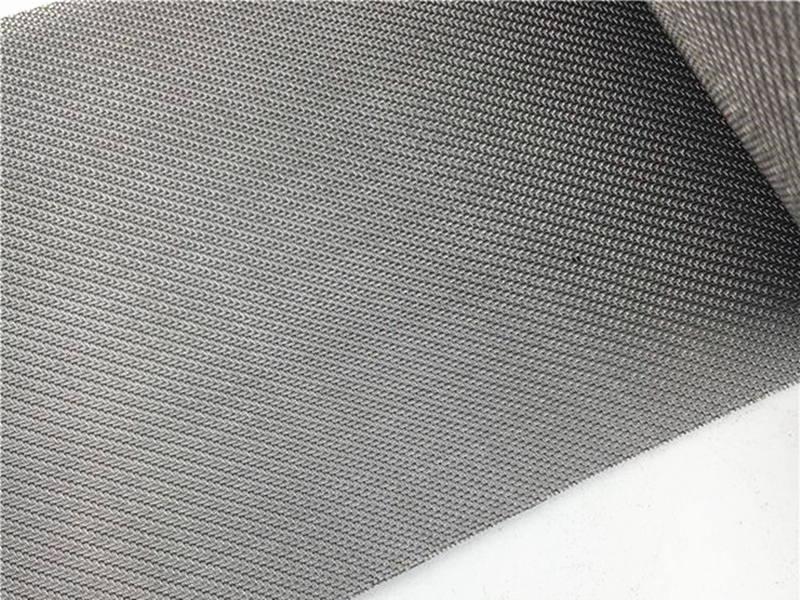

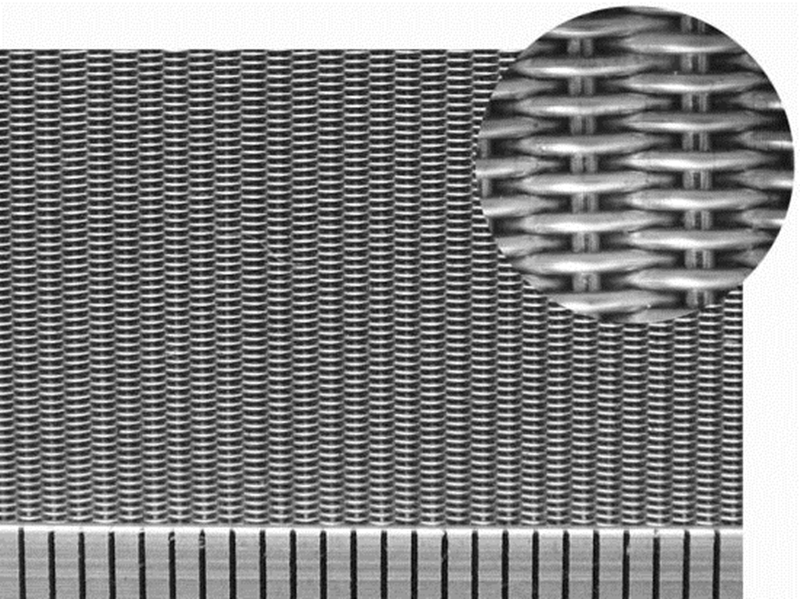

Twill Dutch weave wire cloth combines Dutch and twill weaving to provide a fine mesh filtering cloth. Shute wires are passed over and under two warp wires, providing a tight, fine filter with tapered openings. The weaving process allows for the use of very fine wires, to micron size, producing filtering mesh for gas and liquid applications.
Weiyue Wire offers custom wire configurations for wire cloth to meet the specific needs of its clients. For Dutch weaves micron-grade wire is most commonly used. In addition,WEIYUE has the capability to manufacture:
We offer a wide range of metals and alloys to provide the best material or combination of materials for the filter mesh.
A full range of conversion services are available. These include slitting and shearing, annealing and stretching WEIYUE can also provide information on the filtration performance of the mesh to ensure it meets product requirements.
Twill Dutch Weave Wire Cloth Specifications

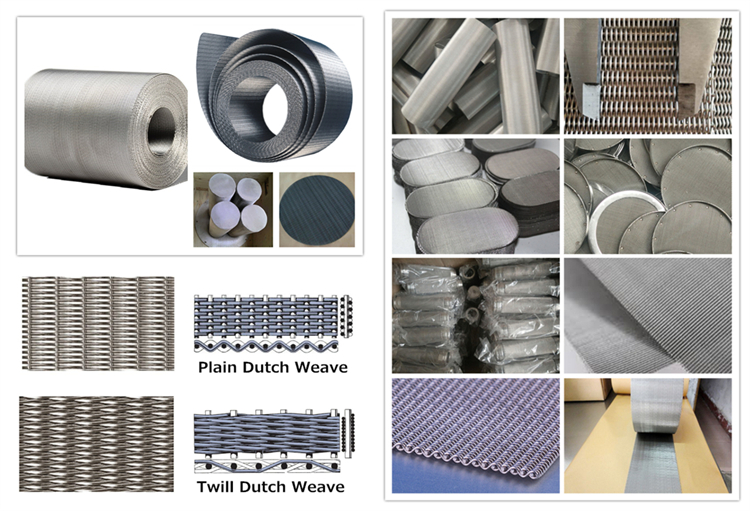

The table below shows the standard specifications for WEIYUE's Plain Dutch and Twill Dutch weave wire cloth.
Twill dutch woven
Mesh/Inch (warp×weft)
Wire Dia. warp×weft (mm)
Normal size (μm)
Effective
Weight kg/sq.m
Cloth thickness
20×270
0.25×0.2
119
17.6
3.14
0.65
20×200
0.355×0.28
118
12.1
4.58
0.915
24×300
0.28×0.18
110
19.6
3.01
0.64
20×150
0.45×0.355
101
7.5
6.02
1.16
30×340
0.28×0.16
89
17.9
2.84
0.60
30×270
0.28×0.20
77
11.2
3.41
0.68
40×540
0.18×0.10
70
23.5
1.73
0.38
40×430
0.18×0.125
63
15.4
2.09
0.43
50×600
0.125×0.09
51
17.2
1.47
0.305
50×500
0.14×0.11
47
12
1.83
0.364
65×600
0.14×0.09
36
1.59
0.32
70×600
0.14×0.09
31
10.1
1.61
78×760
0.112×0.071
13.5
1.25
0.254
78×680
0.112×0.08
29
10.3
1.37
0.272
80×680
0.112×0.08
28
9.8
1.38
90×850
0.10×0.063
26
12.7
1.12
0.226
90×760
0.10×0.071
24
9.6
1.23
0.242
100×850
0.10×0.063
22
10
1.14
0.226
130×1500
0.063×0.036
21
18.6
0.64
0.135
100×760
0.10×0.071
20
7.4
1.25
0.242
130×1200
0.071×0.045
18
12
0.80
0.161
130×1100
0.071×0.05
17
9.4
0.87
0.171
150×1400
0.063×0.04
15
11.4
0.71
0.143
160×1500
0.063×0.036
12.4
0.67
0.135
165×1500
0.063×0.036
14
11.4
174×1700
0.063×0.032
13
12.9
0.62
0.127
165×1400
0.063×0.04
8.8
0.73
0.143
174×1400
0.063×0.04
11
7.4
0.74
203×1600
0.05×0.032
10
9.3
0.58
0.114
216×1800
0.045×0.03
9.4
0.53
0.105
203×1500
0.056×0.036
9
6.2
0.67
0.128
250×1900
0.04×0.028
8
7.8
0.51
0.096
250×1600
0.05×0.032
3.8
0.63
0.114
285×2100
0.036×0.025
7
7.2
0.44
0.086
300×2100
0.036×0.025
6
6.0
317×2100
0.036×0.025
5
4.7
325×2300
0.036×0.024
4
4.2
363×2300
0.032×0.022
4.5
0.40
0.076
400×2700
0.028×0.02
4.7
0.36
0.068
500×3500
0.025×0.015
3
Contact: David Liu Phone: 0086-18831823993 Tel: 0086-318-5289565 Email: david@weiyuemesh.com Add: NO.18, WARP3 ROAD,ANPING COUNTY,HENGSHUI CITY,HEBEI PROVINCE,CHINA
