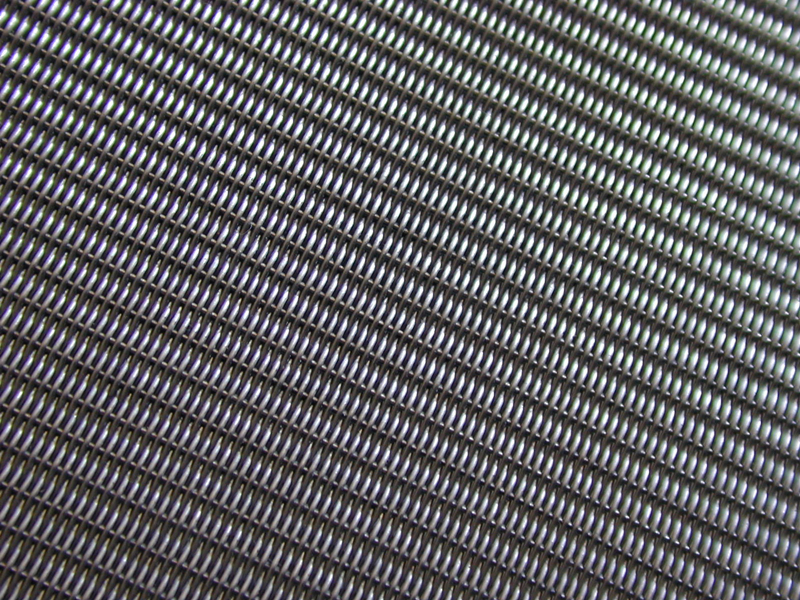

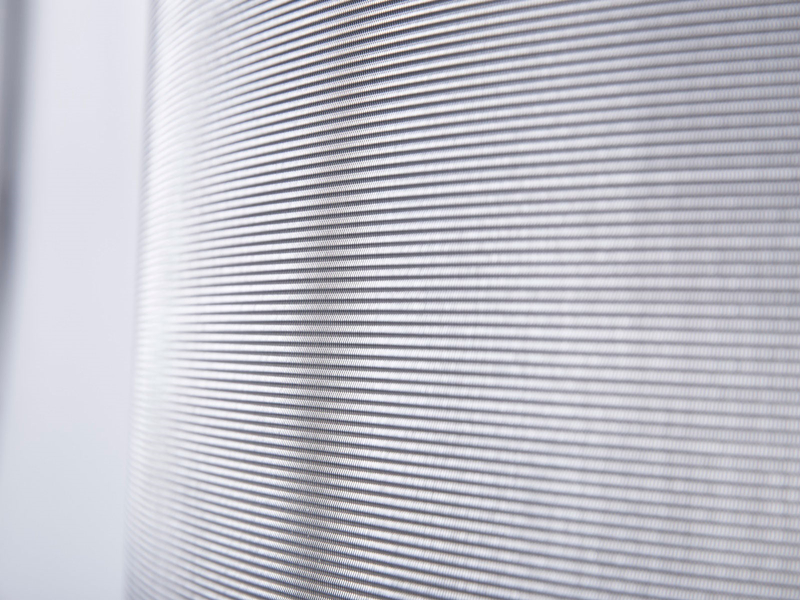

Plain Dutch Weave Filter Cloth

  • Material:304 304L 316 316L
  • Mesh:7-400mesh
  • Weaving: plain weave
  • Use:filter etc.
  • Product description: Plain Dutch weave wire cloth is woven using two sizes of wire. Smaller wires, as small as micron size, are used in the shute direction and are woven with a larger warp wire.
  • INQUIRY

PLAIN DUTCH WEAVE & TWILL DUTCH WEAVE WIRE CLOTH


WeiYue manufactures custom wire cloth to meet clients’ filtration needs. Dutch weave filter mesh provides superior filtration capabilities for a wide range of applications including, pressure, fuel and liquid filters for aerospace, petrochemical, pharmaceutical, mining, and waste water treatment industries.

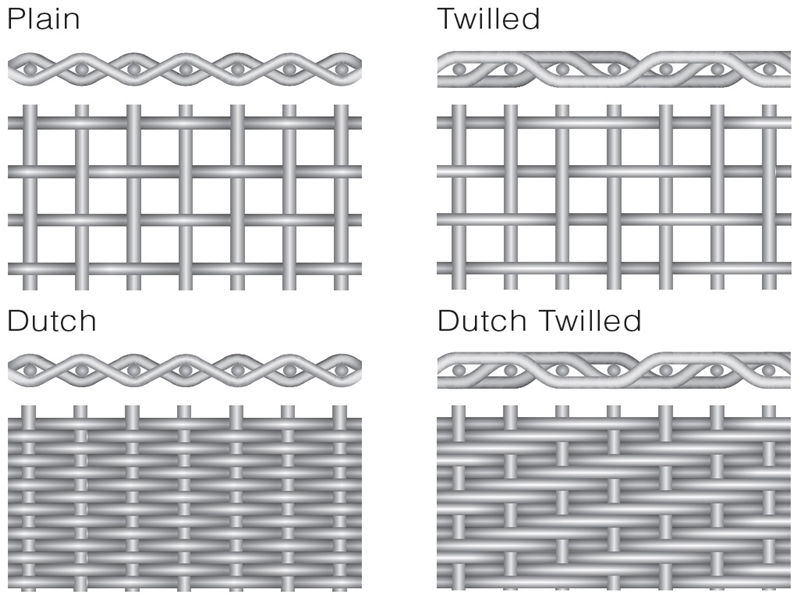

Twill Dutch weave wire cloth combines Dutch and twill weaving to provide a fine mesh filtering cloth. Shute wires are passed over and under two warp wires, providing a tight, fine filter with tapered openings. The weaving process allows for the use of very fine wires, to micron size, producing filtering mesh for gas and liquid applications.

Dorstener Wire offers custom wire configurations for wire cloth to meet the specific needs of our clients. For Dutch weaves, micron-grade wire is most commonly used. In addition, DWT has the capability to manufacture extra long roll or coils up to 800’ with no seams and extra wide widths up to 120”.

We offer a wide range of metals and alloys to provide the best material or combination of materials for the filter mesh.

A full range of conversion services are available. These include slitting, shearing, annealing and stretching. DWT can also provide information on the filtration performance of the mesh to ensure it meets product requirements.


PLAIN DUTCH WEAVE & TWILL DUTCH WEAVE WIRE CLOTH SPECIFICATIONS


Plain Dutch weave wire cloth

Mesh/Inch   (warp×weft)

Wire Dia.    warp×weft    (mm)

Normal size   (μm)

Effective
area%

Weight kg/sq.m

Cloth thickness
(mm)

7×44

0.71×0.63

319

14.2

5.55

1.97

8×45

0.8×0.6

310

15.5

5.7

2.00

8×60

0.63×0.45

296

20.3

4.16

1.53

8×85

0.45×0.315

275

27.3

2.73

1.08

10×90

0.45×0.28

249

29.2

2.57

1.01

10×76

0.5×0.355

248

21.8

3.24

1.21

12×86

0.45×0.315

211

20.9

2.93

1.08

12×64

0.56×0.40

211

16.0

3.89

1.36

12×76

0.45×0.355

192

15.9

3.26

1.16

14×100

0.40×0.28

182

20.3

2.62

0.96

14×110

0.4×0.25

177

22.2

2.28

0.855

14×76

0.45×0.355

173

14.3

3.33

1.16

16×100

0.40×0.28

160

17.7

2.7

0.96

17×120

0.355×0.224

155

22.4

2.19

0.803

16×120

0.28×0.224

145

19.2

1.97

0.728

20×140

0.315×0.20

133

21.5

1.97

0.715

20×170

0.25×0.16

130

28.9

1.56

0.57

20×110

0.355×0.25

126

15.3

2.47

0.855

22×120

0.315×0.224

115

15.5

2.20

0.763

25×140

0.28×0.20

100

15.2

1.96

0.68

24×110

0.355×0.25

97

11.3

2.60

0.855

28×150

0.28×0.18

92

15.9

1.87

0.64

30×150

0.25×0.18

82

13.5

1.79

0.61

30×140

0.315×0.20

77

11.4

2.21

0.715

35×190

0.224×0.14

74

16.8

1.47

0.504

35×170

0.224×0.16

69

12.8

1.62

0.544

40×200

0.18×0.135

63

15.4

1.24

0.43

50×250

0.14×0.11

50

15.2

1

0.36

60×500

0.14×0.055

51

34.1

0.70

0.252

50×270

0.14×0.10

50

15.2

0.98
