Stainless steel mesh

Wedge Wire Screen

-High hardness, High strength, High-durability
-Larger effective filtration area
-Uniform gap
-Clog proof design
Product description: Slot mesh filter elements are stainless steel wedge wire welded into screen. Filter rating range from 15-800 micron are available. Wedge filter is welded with stainless steel wedge shaped wire and sup
INQUIRY

Wedge Wire Screen

Materials: 304, 302, 304L, 316, 316L stainless steel wire, Duplex SS, Supper Duplex SS.

Advantage:
-High hardness, High strength, High-durability
-Larger effective filtration area
-Uniform gap
-Clog proof design

Specification:
-Filtration rate: 15-800μm
-OD: 25.4-1200mm, Length: 6 meter(no splice)
-Wedge filter is valid in kinds of shapes, such as Square, rectangle, disc, basket, tube, cone.
-The slot: 0.1mm-45mm
-Wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm
-The rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50.
-Height 6-40 mm
-The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).
-Slot filter is valid in kinds of shapes, such as Square, rectangle, disc, basket, tube, cone.
-Styles of connection: by welding or by threaded male/female coupling.
-Hanke Filter can be customized by your demands.

Application:
-Petrochemical industry: catalytic reaction engineering, hydrogen desulfurization, stupid ethane dehydrogenation, ammonia conversion, ISOM.
-Water treatment
-Mineral processing
-Paper making

-Food and drinking industry

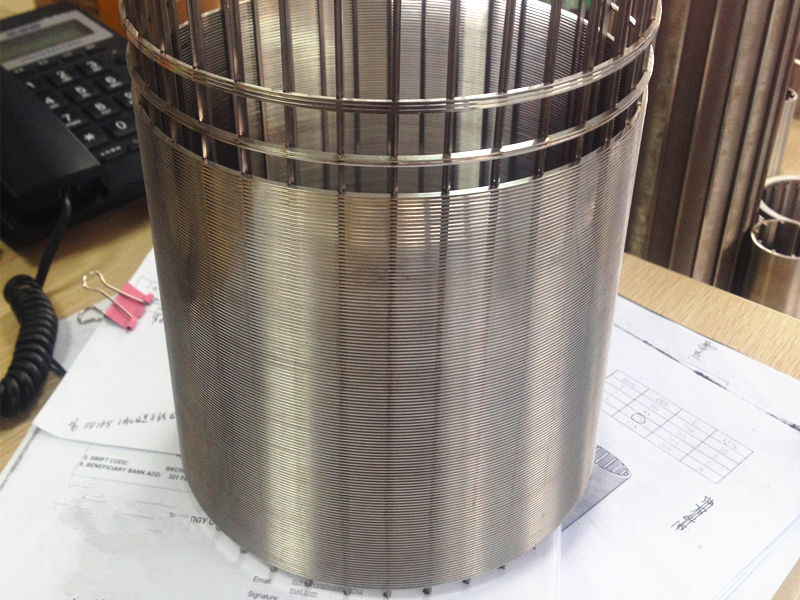

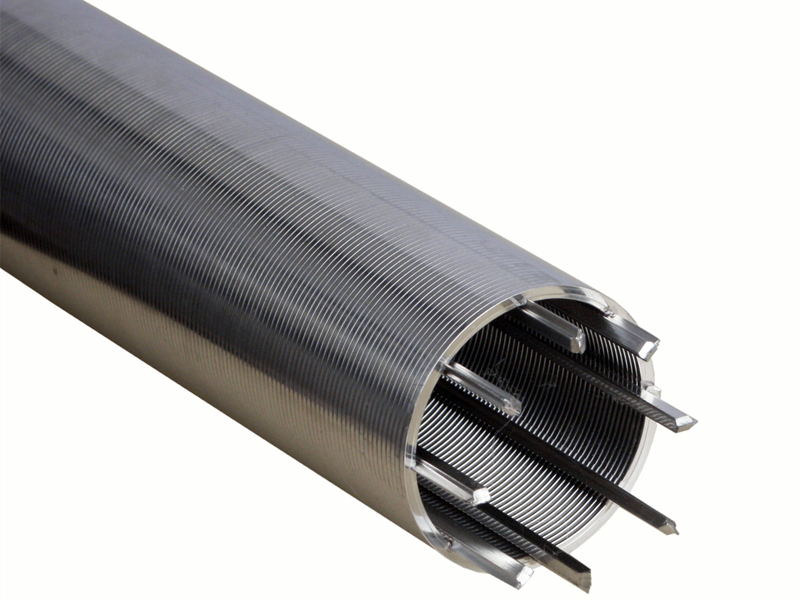

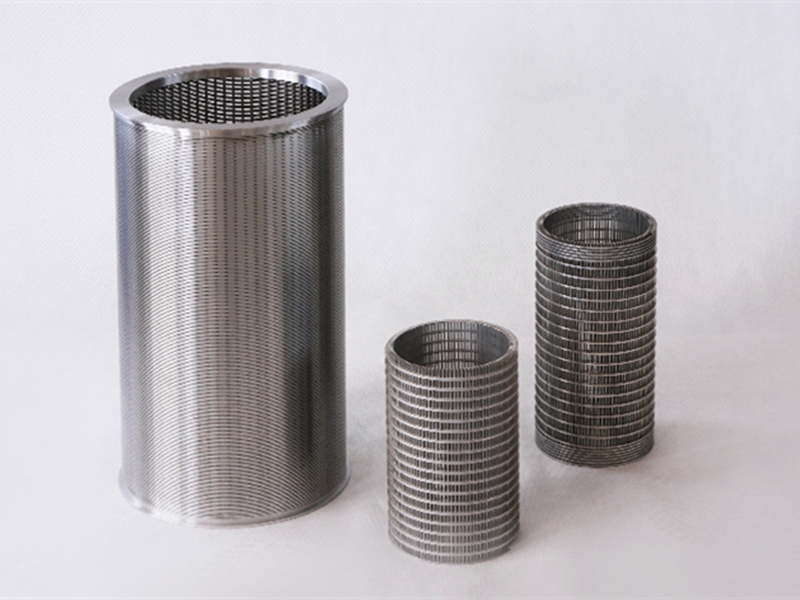

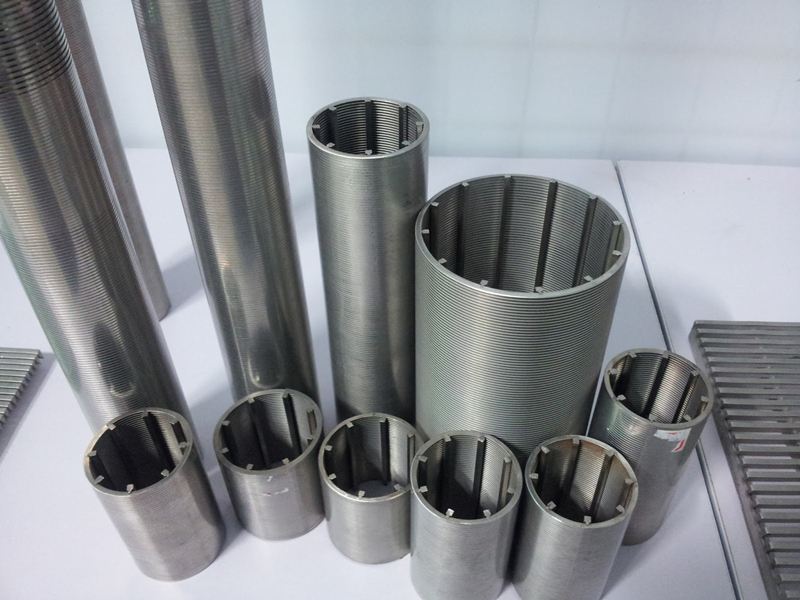

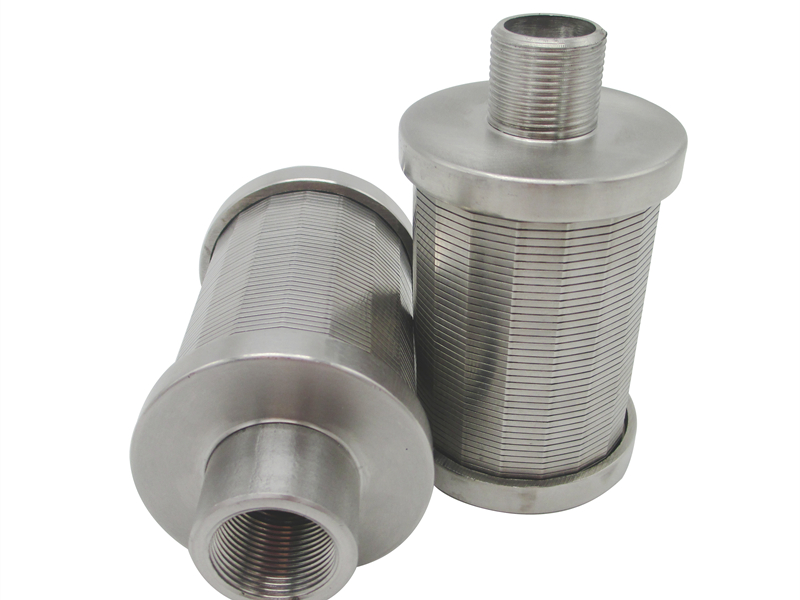

Photo List

Wedge Wire Screen

Specification

	Wire Width	Wire Height	Relief Angle	Typical Support Rods
30V	.030"	.06"	10	.125" round
45V	.045"	.09"	10	.125" round
63V	.063"	.11"	13	.156" round
69U	.069"	.17"	8	.075" x 1" bar
93V	.093"	.15"	13	.25" round or .075" bar
93U	.093"	.17"	5	.25" or .38" round
125V	.125"	.20"	13	.38" round
