Stainless steel mesh

  • Stainless Steel 304/316/316L 0.018-0.05 mm wire
  • Stainless Steel 304/316/316L 0.018-0.05 mm wire
  • Stainless Steel 304/316/316L 0.018-0.05 mm wire
  • Stainless Steel 304/316/316L 0.018-0.05 mm wire
  • Stainless Steel 304/316/316L 0.018-0.05 mm wire
Stainless Steel 304/316/316L 0.018-0.05 mm wireStainless Steel 304/316/316L 0.018-0.05 mm wireStainless Steel 304/316/316L 0.018-0.05 mm wireStainless Steel 304/316/316L 0.018-0.05 mm wireStainless Steel 304/316/316L 0.018-0.05 mm wire

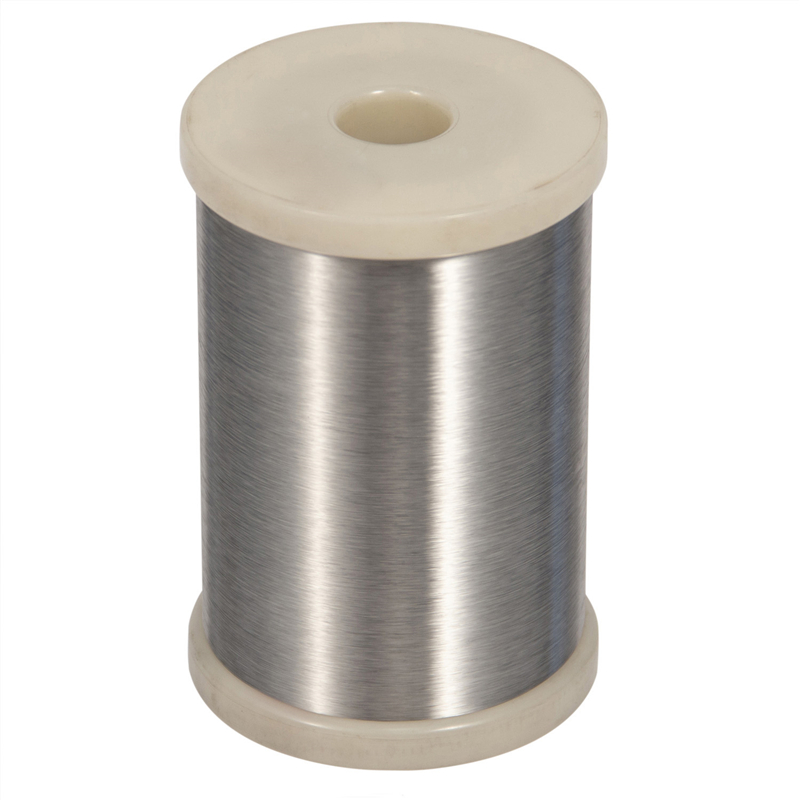

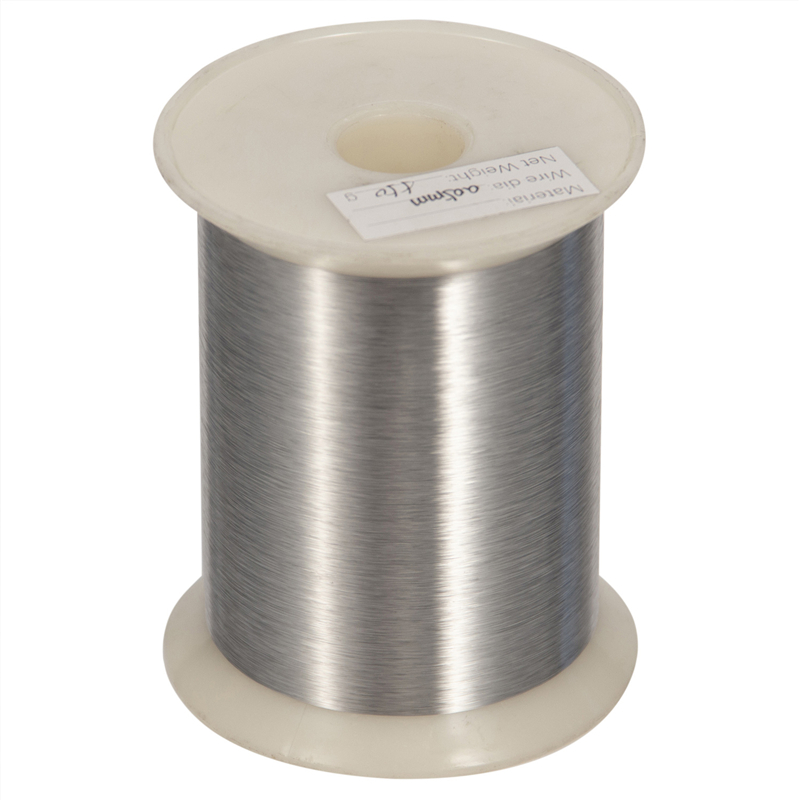

Stainless Steel 304/316/316L 0.018-0.05 mm wire

  • Material:304 304L 316 316L etc.
  • Diameter:0.018mm to 0.05mm
  • Product description: Spools: Under normal circumstances, we are the following five specifications, but according to customer requirements for the production of other spools.
  • INQUIRY
Material:304 304L 316 316L etc.
Diameter:0.018mm to 0.05mm
Stainless steel wire application
(1) Tools: tie wire, pins, lashing, forming wire, filters,, gaskets, safety wire .etc.
(2) Fittings: weaving woven wire mesh, conveyors, jewelry, springs, wire line, bicycle fittings,
craft fittings .etc
(3) Goods: kitchen tools, sanitation tools, goods shelf, pet cages, gill racks, and baskets .etc
(4) Food and medical machinery accessories.

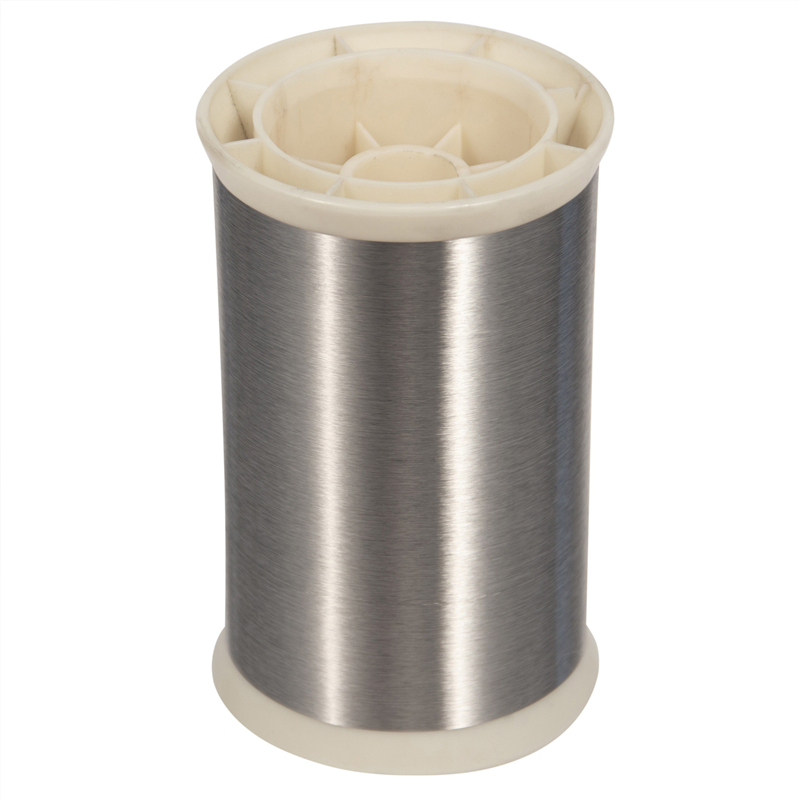

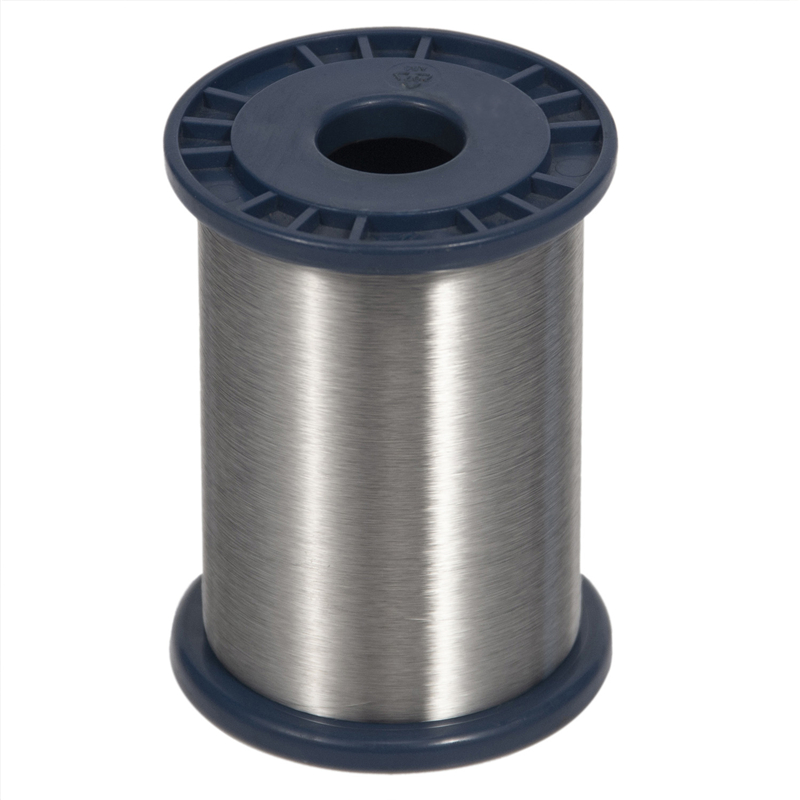

Spools: Under normal circumstances, we are the following five specifications, but according to customer requirements for the production of other spools.


HK100 HK115 K90*100 PL-1 KK80
D1 100 115 90 80 80
D2 74 88 60 60 53
D3 25 25 20 20 20
L1 160 140 120 120 100
L2 85 80 100 100 70
Weight(g) 274 280 100 76 82
Our products strength and elongation.
material Wire Dia.(mm) strength(mpa) EL(%) SWG AWG Inch Allow difference  (mm)
316L 0.035 570-800 ≥22
AWG 47 0.00138 +0.002
-0.001
316L 0.04 550-800 ≥23 SWG 48 AWG 46 0.00158

+0.002

-0.001
316L 0.05 680-850 ≥24 SWG 47 AWG 44 0.00197 ±0.002
